Choosing steel sheet metal in 2026 requires more than comparing prices per ton. The right decision depends on strength, thickness, surface quality, corrosion resistance, forming behavior, and delivery reliability. A sheet that looks perfect under warehouse lights may crack during bending or develop rust near exposed edges.
Real workshop experience makes these risks easier to recognize. Operators often notice problems when a press brake leaves uneven marks, or when laser cutting creates excessive heat distortion. Details matter. Material grade should match the load, joining method, and working environment. Galvanized steel may suit outdoor enclosures, while cold-rolled steel can provide a cleaner surface for indoor painted parts.
Technical data must support every recommendation. Review mill certificates, dimensional tolerances, coating weights, and applicable industry standards. Confirm whether the supplier can provide batch traceability and consistent flatness. Ask how the material was stored. Moisture damage is not always visible immediately.
Cost still matters, but the lowest quote can hide waste, rework, or delayed production. A reliable supplier should explain trade-offs clearly and provide samples when surface finish or forming performance is critical. Ask better questions.
Even experienced buyers can make imperfect choices. A familiar grade may fail after a design change, coating change, or tighter tolerance requirement. Recheck the specification before ordering large quantities. In 2026, better steel sheet metal selection combines practical testing, verified documentation, and honest review of production conditions. The strongest choice is not always the hardest or cheapest sheet. It is the material that performs consistently from the first cut to the final inspection.

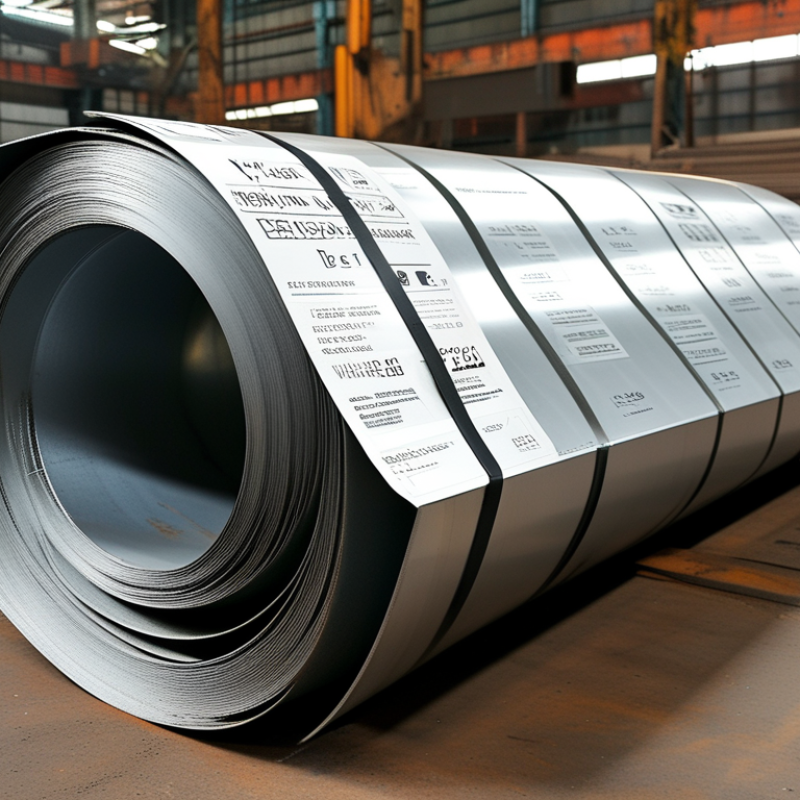

How to Choose Steel Sheet Metal in 2026?
Start with the application, not the catalog number. A roof panel, machine guard, food-processing enclosure, and vehicle bracket need different steel properties. World Steel Association data recorded about 1.89 billion tonnes of crude steel production in 2023, showing the material’s scale and variety. That variety can mislead buyers. Define forming depth, cutting method, load direction, weld requirements, and visible-surface expectations before selecting a grade. A deep-drawn panel may need higher ductility, while a structural bracket may prioritize yield strength. Measure twice.
Performance needs should become measurable requirements. Specify tensile strength, yield strength, elongation, hardness, flatness, and thickness tolerance. For exposed parts, review coating mass and edge protection rather than choosing “corrosion-resistant” steel without evidence. The NACE IMPACT study estimated global corrosion costs near 2.5 trillion dollars annually, equal to roughly 3.4% of global economic output. That older estimate still exposes a costly mistake: a cheaper sheet can create higher maintenance costs. I would also question whether the design truly needs ultra-high strength. It may reduce thickness, but springback and forming failures can increase scrap.
Service conditions decide the final choice. Record humidity, salt exposure, chemicals, temperature cycles, abrasion, and contact with dissimilar metals. A sheet stored near a coastal loading bay faces different risks from one inside a dry workshop. Ask for mill certificates, coating test results, and traceable batch information. ASTM test methods can support comparisons, but laboratory results rarely reproduce every installation detail. That gap deserves attention. Real service data should influence the specification, even when it challenges the first design assumption.
| Steel Sheet Type | Typical Standards or Designations | Typical Yield Strength | Typical Tensile Strength | Best-Fit Applications | Formability and Fabrication | Corrosion and Service Conditions | Key Selection Considerations |
|---|---|---|---|---|---|---|---|
| Low-Carbon Cold-Rolled Steel | Commercial quality; drawing-quality grades under common cold-rolled sheet standards | Approximately 140–280 MPa | Approximately 270–380 MPa | Indoor cabinets, brackets, panels, furniture components, general fabrication, and parts requiring a smooth surface. |
Excellent bending Excellent deep drawing Easy to laser cut, punch, weld, and form. |
Suitable for dry indoor environments. Requires paint, powder coating, plating, or another protective system for humid or corrosive exposure. | Select when low cost, surface quality, and easy forming are more important than high strength or inherent corrosion resistance. |
| Hot-Rolled Mild Steel Sheet | Structural or commercial hot-rolled sheet grades | Approximately 230–355 MPa | Approximately 360–500 MPa | Machine bases, frames, brackets, agricultural equipment, welded structures, and heavy-duty general-purpose parts. | Good weldability and moderate forming capability. The surface normally has mill scale and is less suitable for highly visible finished surfaces. | Requires coating or other protection in outdoor, wet, or chemically aggressive environments. Mill scale is not a substitute for corrosion protection. | A practical choice for thicker components and structural parts where surface appearance and tight forming tolerances are not primary requirements. |
| Galvanized Mild Steel Sheet | Zinc-coated sheet; coating designations commonly expressed by total zinc mass per square metre | Approximately 140–350 MPa | Approximately 270–500 MPa | Roofing and cladding components, HVAC ducts, enclosures, electrical cabinets, automotive panels, and outdoor sheet-metal assemblies. | Good to excellent formability depending on the base steel and coating. Avoid excessive coating damage during sharp bending, cutting, or welding. | Zinc provides sacrificial protection for exposed steel. Performance depends on coating mass, edge protection, drainage, humidity, salt, and contact with dissimilar metals. | Choose the coating class and base-steel grade together. Add edge sealing or post-treatment where cut edges, severe forming, or coastal exposure are expected. |
| High-Strength Low-Alloy Steel | HSLA structural or automotive sheet grades | Approximately 340–700 MPa | Approximately 450–800 MPa | Vehicle structural parts, trailers, lifting equipment, brackets, frames, transport equipment, and weight-sensitive structures. | Better strength-to-weight ratio than mild steel. Forming is generally more demanding, with higher springback and greater tooling requirements. | No inherent corrosion protection. Use paint, galvanizing, e-coating, or another suitable system for moisture, salt, or chemical exposure. | Select when reducing thickness or component weight is valuable. Confirm minimum inside bend radius, springback allowance, weld procedure, and fatigue requirements. |
| Dual-Phase Advanced High-Strength Steel | AHSS dual-phase sheet grades | Approximately 300–1,000 MPa | Approximately 500–1,200 MPa | Crash-management components, automotive reinforcements, safety structures, rails, pillars, and lightweight formed components. | High strength with useful elongation, but forming requires controlled tooling, accurate springback compensation, and suitable welding parameters. | Requires a corrosion-protection system unless supplied with a compatible metallic coating. Surface treatment must be verified for the intended environment. | Use only when the design benefits from high strength and weight reduction. Validate forming-limit performance, edge cracking risk, and joining compatibility. |
| Weathering Steel Sheet | Atmospheric-corrosion-resistant structural steel grades | Approximately 345–550 MPa | Approximately 485–700 MPa | Bridges, architectural panels, outdoor sculptures, rail-related structures, and exposed structural components. | Weldable with an approved procedure. Surface appearance develops naturally over time; forming capability depends on grade and thickness. | Forms a protective patina in suitable alternating wet-and-dry atmospheres. Not recommended for continuously wet, submerged, poorly drained, or chloride-heavy conditions. | Confirm climate suitability, drainage, runoff staining, joint design, and welding consumables before eliminating a conventional coating system. |
| Austenitic Stainless Steel | Common chromium-nickel or chromium-nickel-molybdenum stainless sheet grades | Approximately 170–310 MPa | Approximately 485–620 MPa | Food-processing equipment, architectural trim, medical equipment, chemical-processing components, commercial kitchens, and cleanable enclosures. | Very good corrosion resistance and weldability. High work hardening can increase forming force and springback; use clean tooling to prevent contamination. | Good general atmospheric and moisture resistance. Molybdenum-bearing grades provide improved resistance to chloride-related pitting, but no grade is universally corrosion-proof. | Choose the specific grade according to chloride level, acids, temperature, crevice conditions, surface finish, sanitation needs, and cleaning chemicals. |
| Ferritic Stainless Steel | Chromium stainless sheet grades with low or controlled nickel content | Approximately 240–450 MPa | Approximately 400–650 MPa | Appliance panels, exhaust components, architectural interiors, decorative trim, and applications requiring moderate corrosion resistance. | Good resistance to stress-corrosion cracking in many environments. Formability is generally adequate, but deep drawing and welding behavior vary by grade. | Good oxidation and atmospheric resistance in suitable conditions. Performance can be reduced by chloride exposure, crevices, contamination, and poor surface maintenance. | Consider when moderate corrosion resistance and controlled cost are needed without the higher nickel content of many austenitic grades. |
| Martensitic Stainless Steel | Heat-treatable chromium stainless sheet grades | Approximately 450–1,200 MPa after suitable heat treatment | Approximately 650–1,500 MPa after suitable heat treatment | Wear-resistant covers, blades, cutting components, shafts, precision parts, and components requiring higher hardness. | Lower formability than austenitic stainless steel. Welding and heat treatment require controlled procedures to manage hardness and cracking risk. | Moderate corrosion resistance, generally lower than common austenitic grades. Avoid assuming hardness automatically provides corrosion protection. | Select when hardness, strength, and wear resistance are more important than maximum corrosion resistance or deep-drawing performance. |
| Quenched-and-Tempered Wear-Resistant Steel | Wear-resistant structural sheet grades with specified hardness ranges | Often approximately 900–1,400 MPa, depending on grade | Often approximately 1,000–1,600 MPa, depending on grade | Dump bodies, liners, chutes, buckets, conveyors, hoppers, mining equipment, and parts exposed to abrasive materials. | Limited cold-forming capability compared with mild steel. Requires larger bend radii, suitable tooling, controlled preheating where specified, and qualified welding procedures. | Primarily selected for abrasion resistance, not corrosion resistance. Coating or material upgrades may be required in wet or chemically aggressive service. | Match hardness and toughness to the actual wear mechanism. Verify impact loading, plate thickness, bend radius, weld consumables, and heat input limits. |
